Extreme Tools® DX Series 72” 17 Drawer Roller Cabinet
$2,895.99 $2,349.99
There’s no need to compromise with this high-quality, 72 Inch Roller Cabinet
When you’re ready to add a deep, triple bank roller cabinet to your workshop or garage, look no further than the Extreme Tools® DX Series 72 Inch 17 Drawer Roller Cabinet. This cabinet gives you the features and capacity of a high-end professional cabinet at a price that both pros and DIY’ers will love. This is a stylish, well-constructed toolbox that you’ll appreciate for years to come.
17 Drawers with exclusive Extreme Tools® features

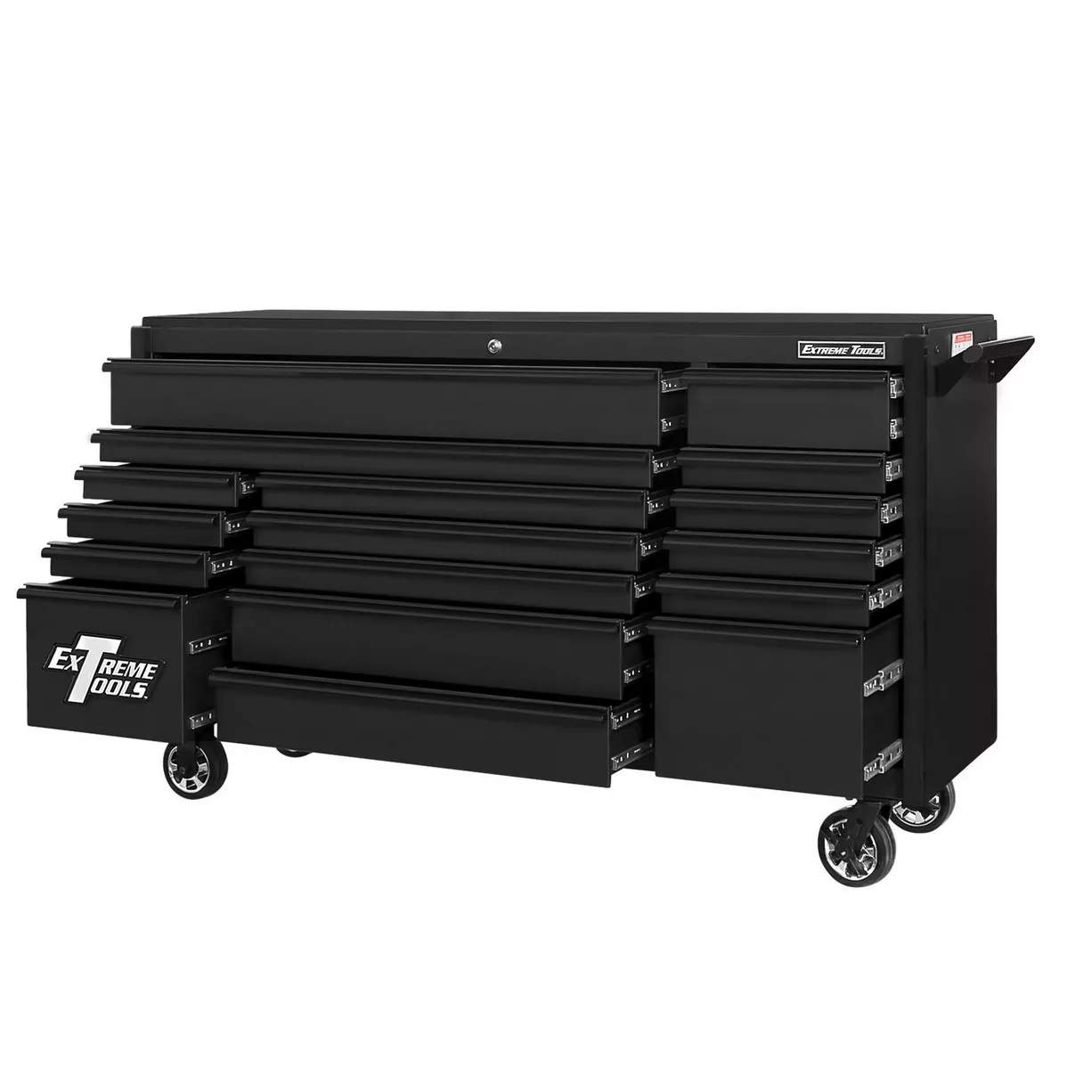

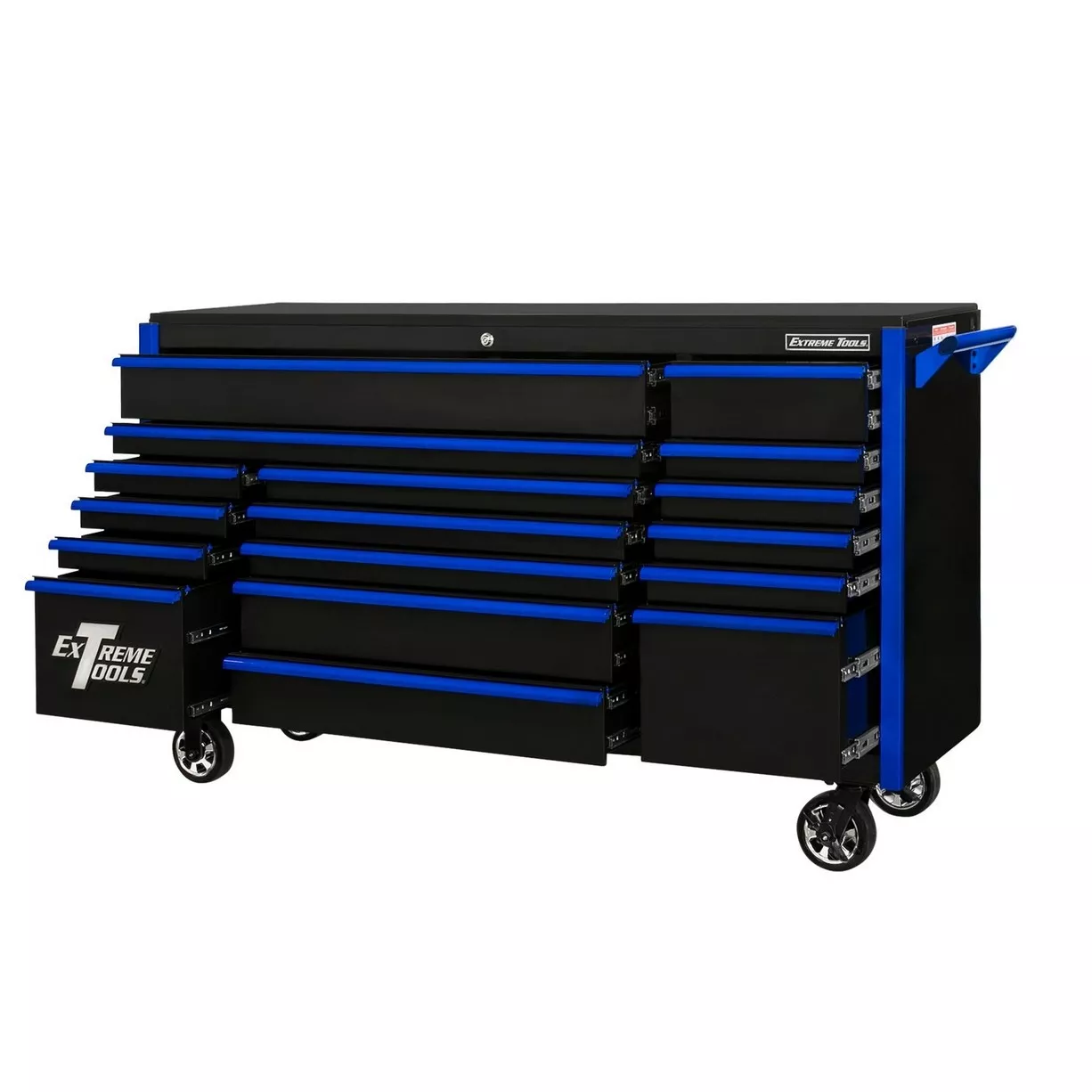

You’ll notice the quality in every element, starting with the seventeen drawers. Each one rides on the smoothest heavy-duty ball-bearing slides, so drawers open and close easily, with just a touch. The slides are full-extension, so you’ll never be rummaging blindly at the back of the drawer — you’ll always be able to see and reach the contents. And our patented quick-release self-latching drawer pulls mean that the drawers will stay securely closed when you’re moving your roller cabinet.
Heavy duty construction, built to handle the weight
Each drawer can handle plenty of weight — up to 200 lbs. in drawers with double slides, and 100 lbs. in drawers with single slides. The wheels can handle a lot, too — there are four 6″x2″ Mag Wheel casters, load-rated at 900 lbs. each. Two of the wheels are locking swivels and two are rigid casters.
The two extra-wide drawers are constructed with welded support brackets, so they will not sag or warp, even under the weight of heavy or bulky tools that you will store in them.
The box features heavy-duty steel frame construction in a 72-inch wide, 21-inch deep cabinet that is built to last, even when you load it up with all your tools. Also, we’ve included premium PVC drawer liners, to protect your tool investment.
Know your tools are secure, in the shop or in the garage
All of the drawers are secured with a tamper-resistant, tubular coded lock system. Knowing that your tools are safe at the end of the day is a priceless feature that you’ll always appreciate.
Six stylish color combinations for your Extreme Tools 72″ Roller Cabinet
This is a cabinet you’ll enjoy looking at, as well as using it. The AkzoNobel high-gloss powder coat finish is available in six vibrant color combinations for you to chose from:

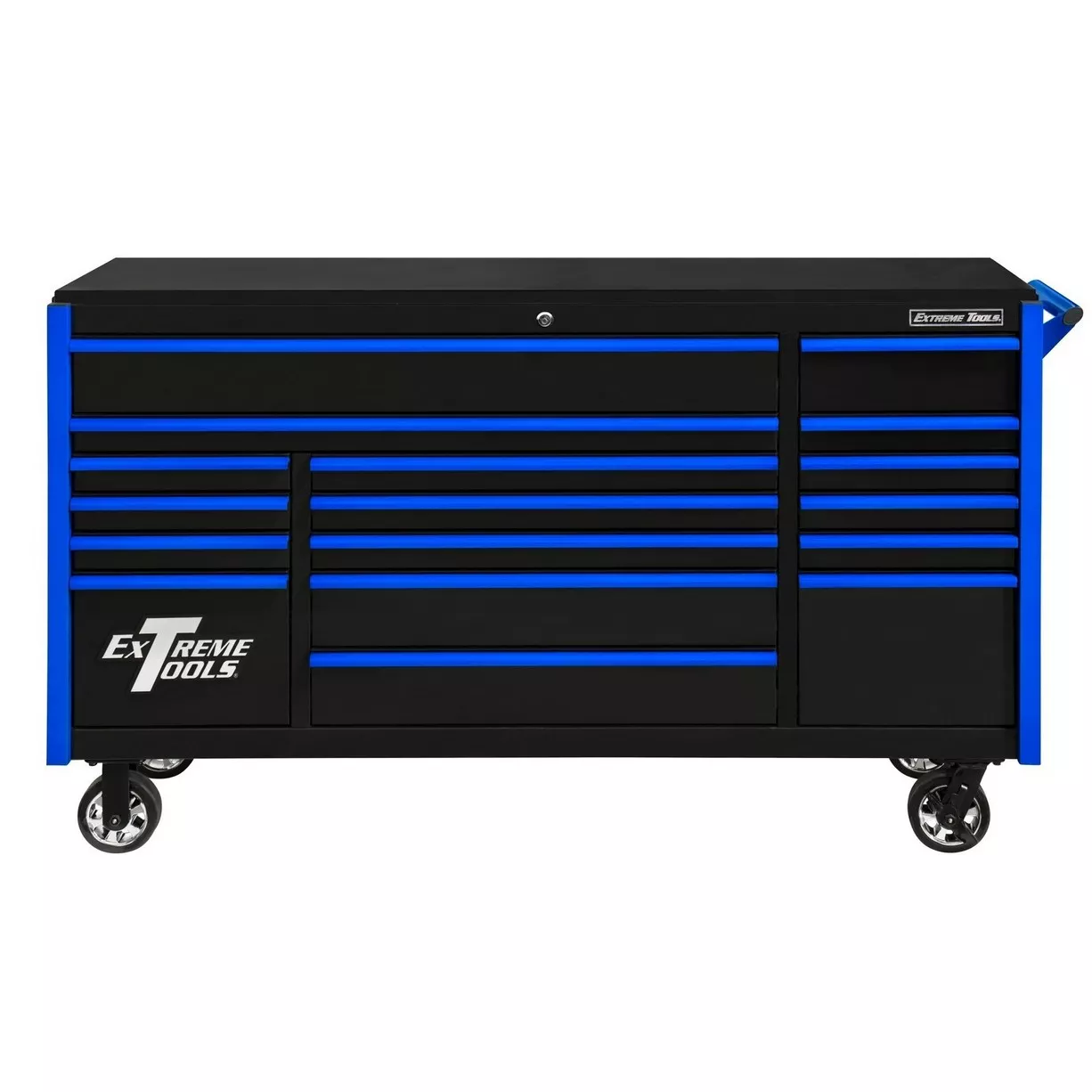

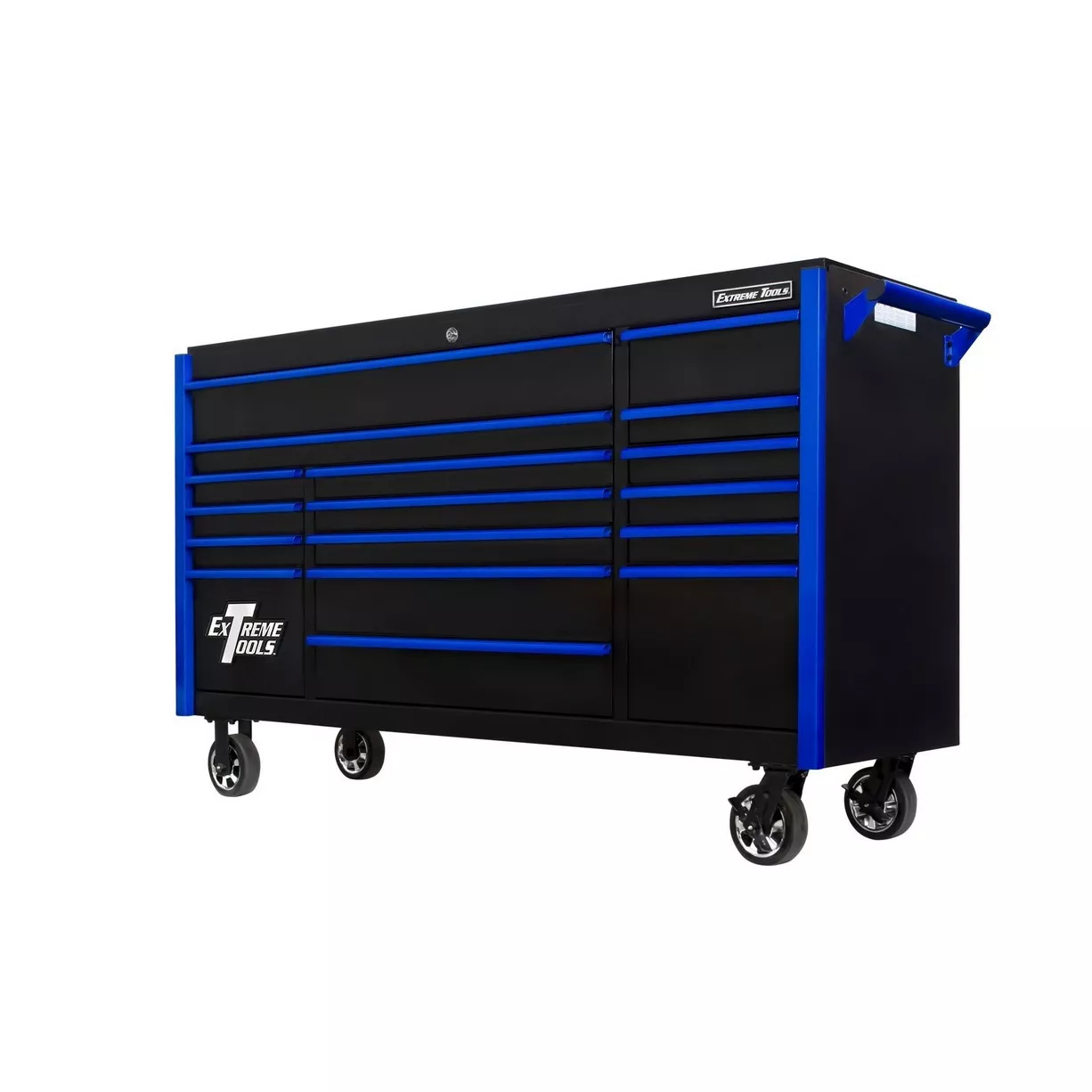

- DX722117RCBKBL, Black with Blue Drawer Pulls

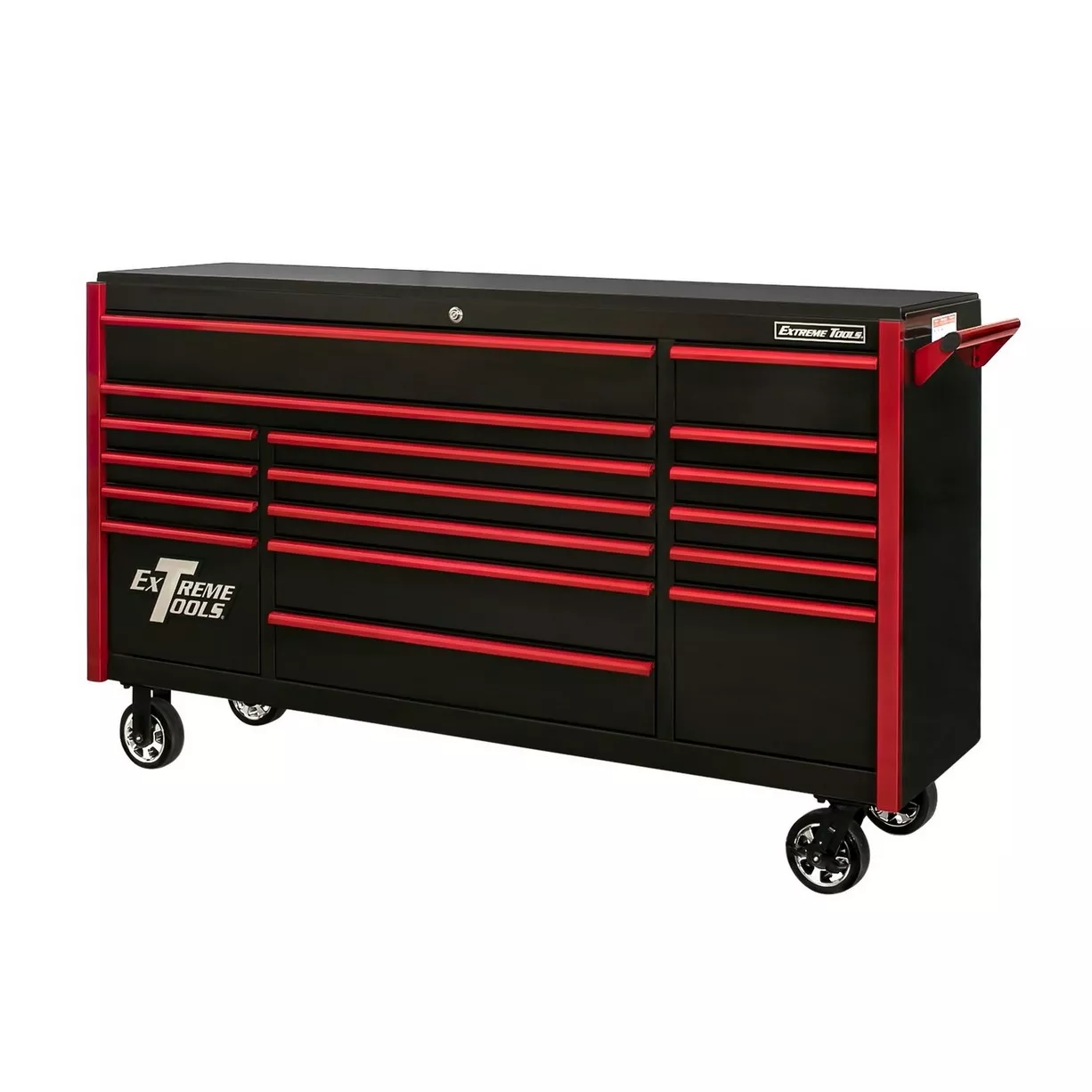

- DX722117RCBKRD, Black with Red Drawer Pulls

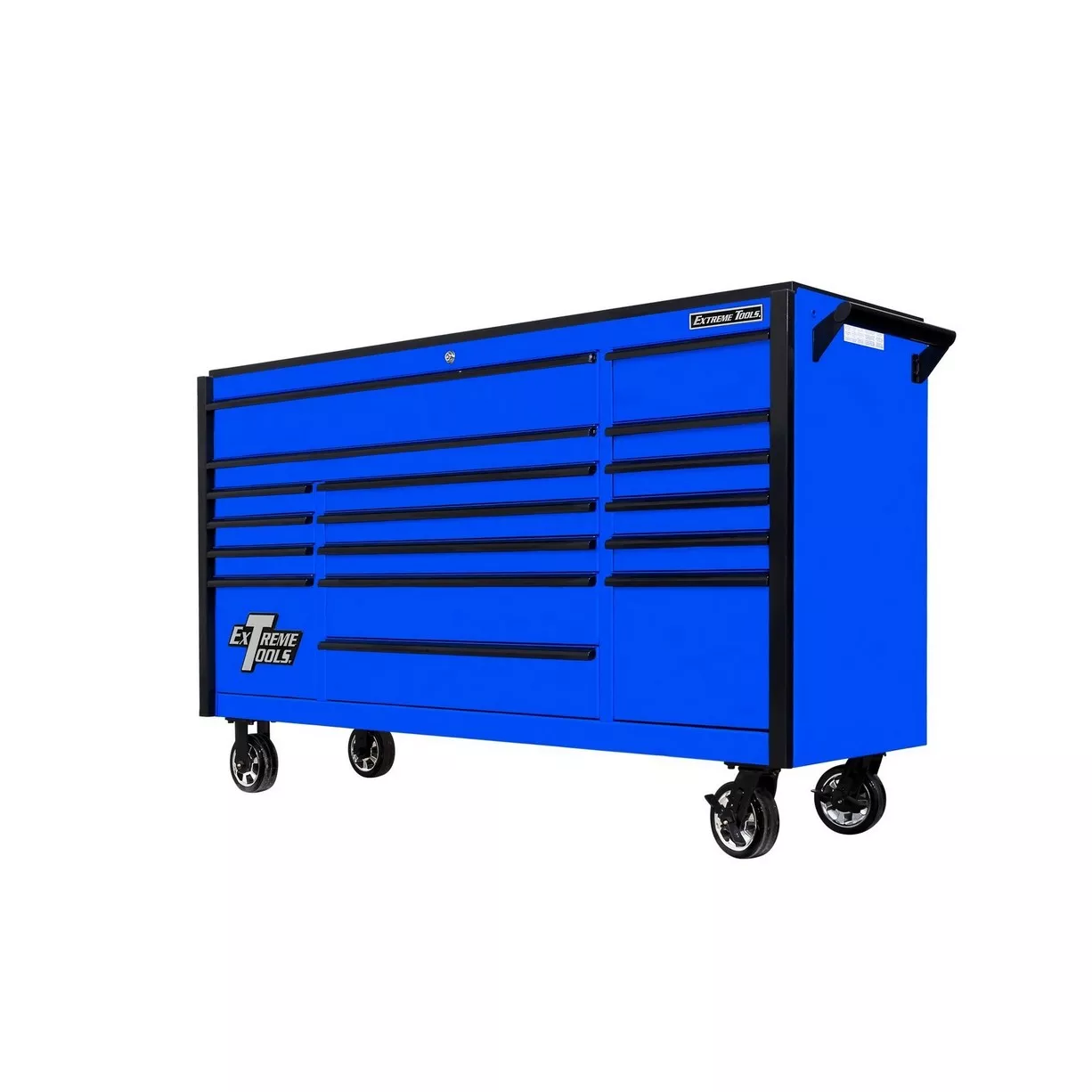

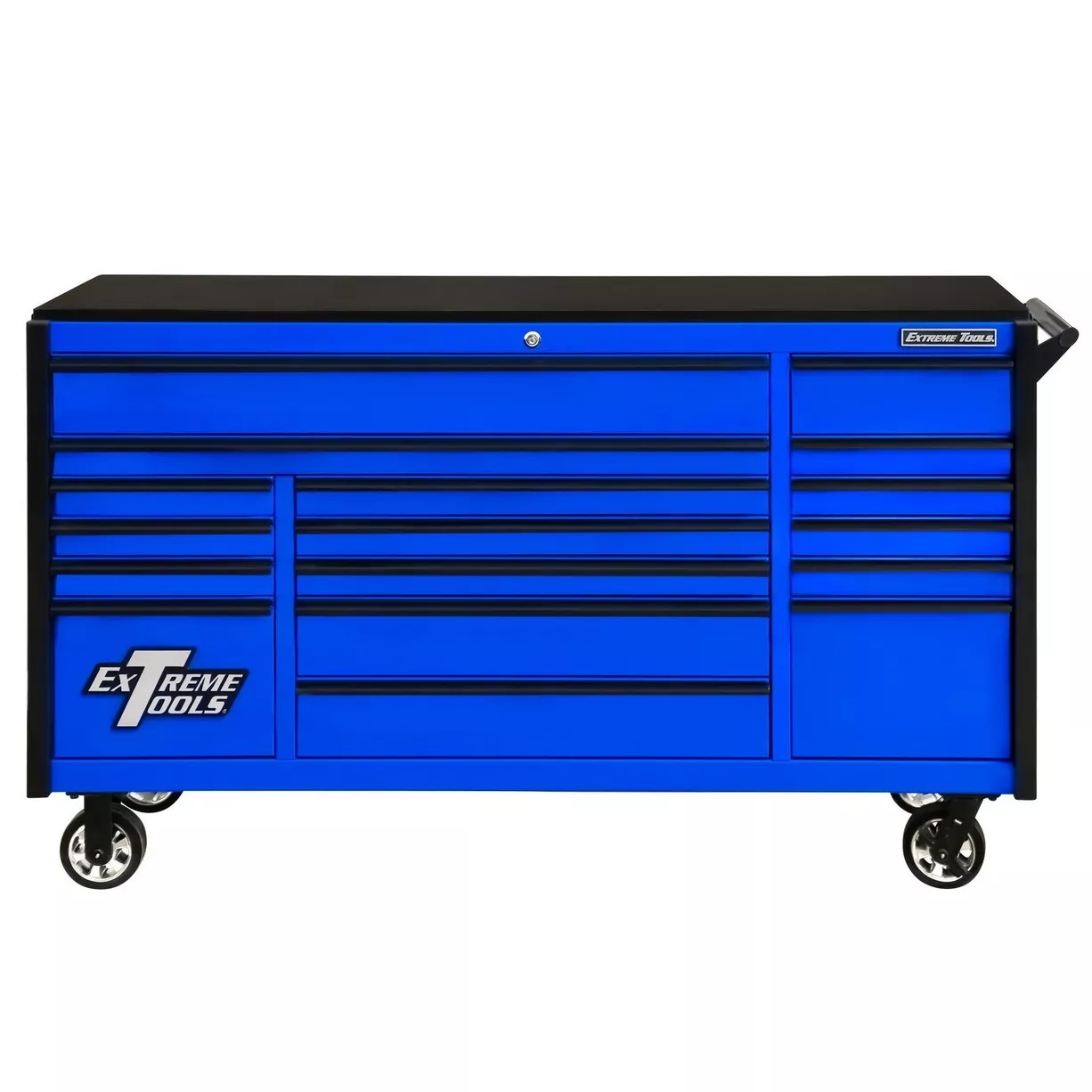

- DX722117RCBLBK, Blue with Black Drawer Pulls
- DX722117RCGNBK, Green with Black Drawer Pulls

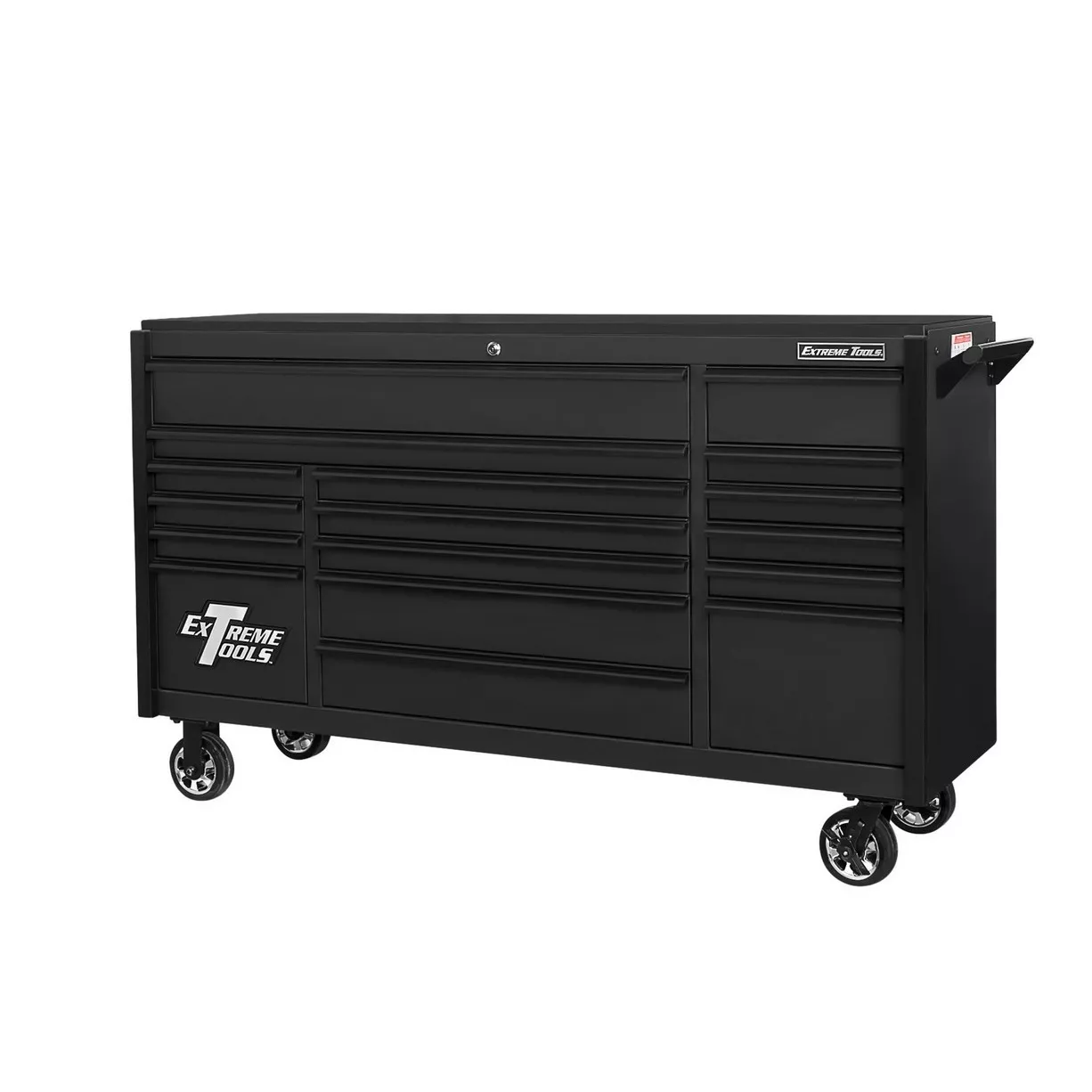

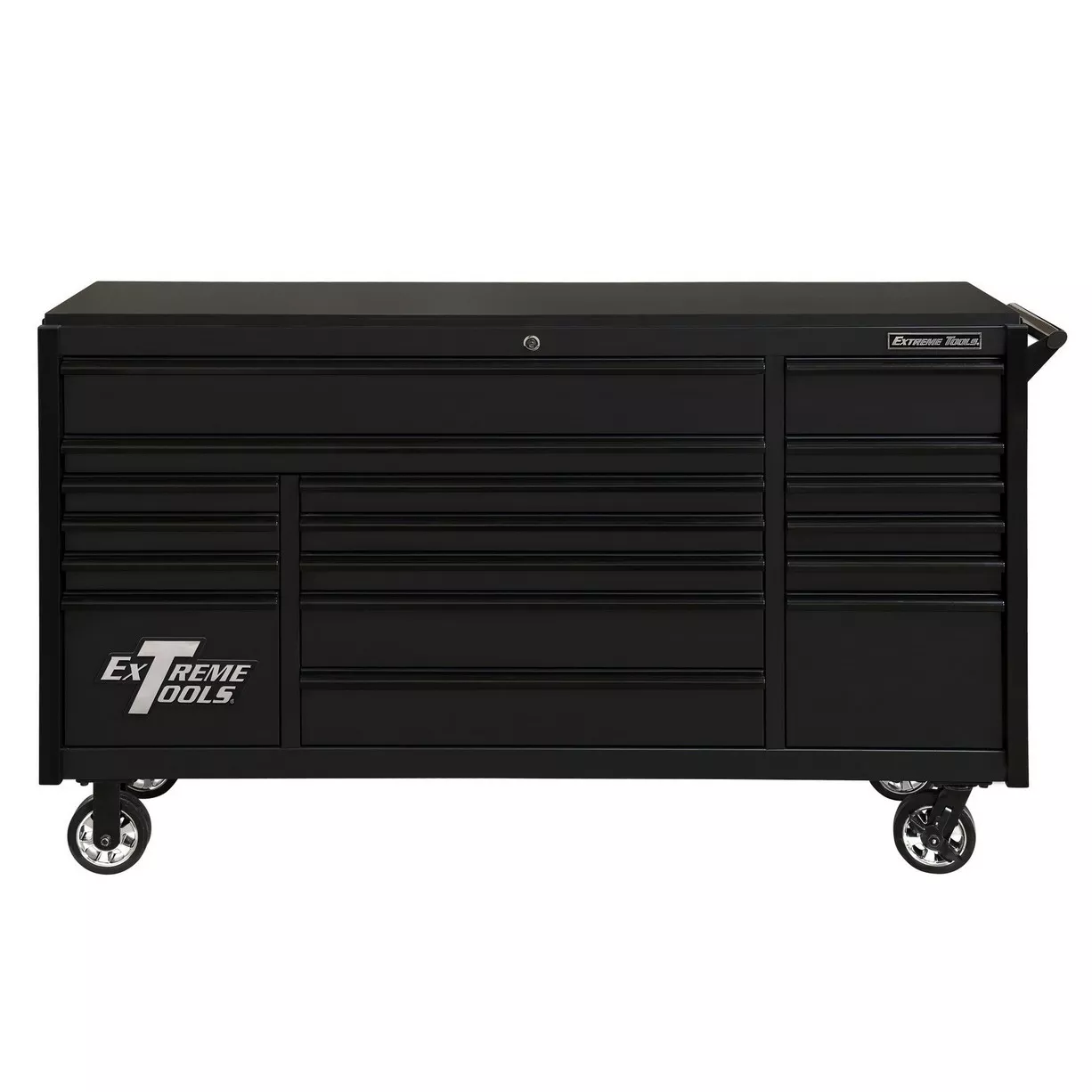

- DX722117RCMBBK, Matte Black with Black Drawer Pulls

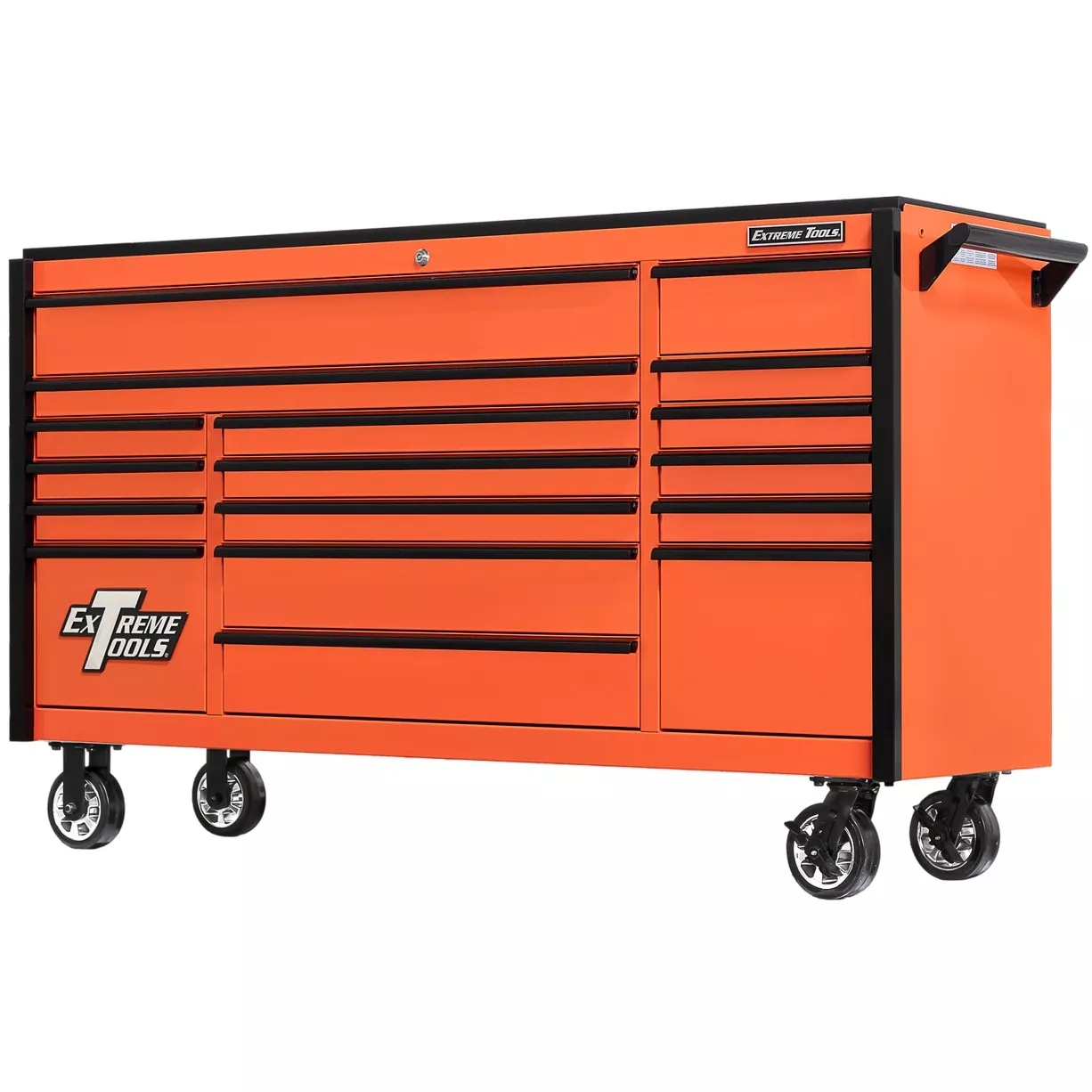

- DX722117RCORBK, Orange with Black Drawer Pulls
Inner Dimensions of the 17 High-Capacity Drawers
- 1 drawer: 50.5″ x 18.1″ x 5.1″
- 1 drawer: 50.5″ x 18.1″ x 2.2″
- 7 drawers: 14.8″ x 18.1″ x 2.2″
- 2 drawers: 14.8″ x 18.1″ x 11.0″
- 3 drawers: 33.1″ x 18.1″ x 2.2″
- 2 drawers: 33.1″ x 18.1″ x 5.1″
- 1 drawer: 14.8″ x 18.1″ x 5.1″
Complete your setup and gain extra space and functionality
For additional space and the ability to securely charge your power tools, consider adding these DX Series models to your setup:

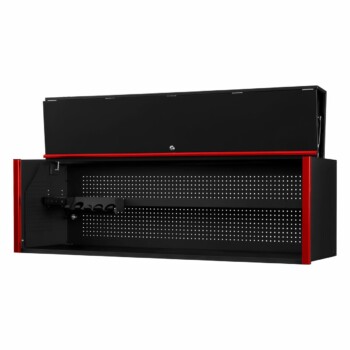

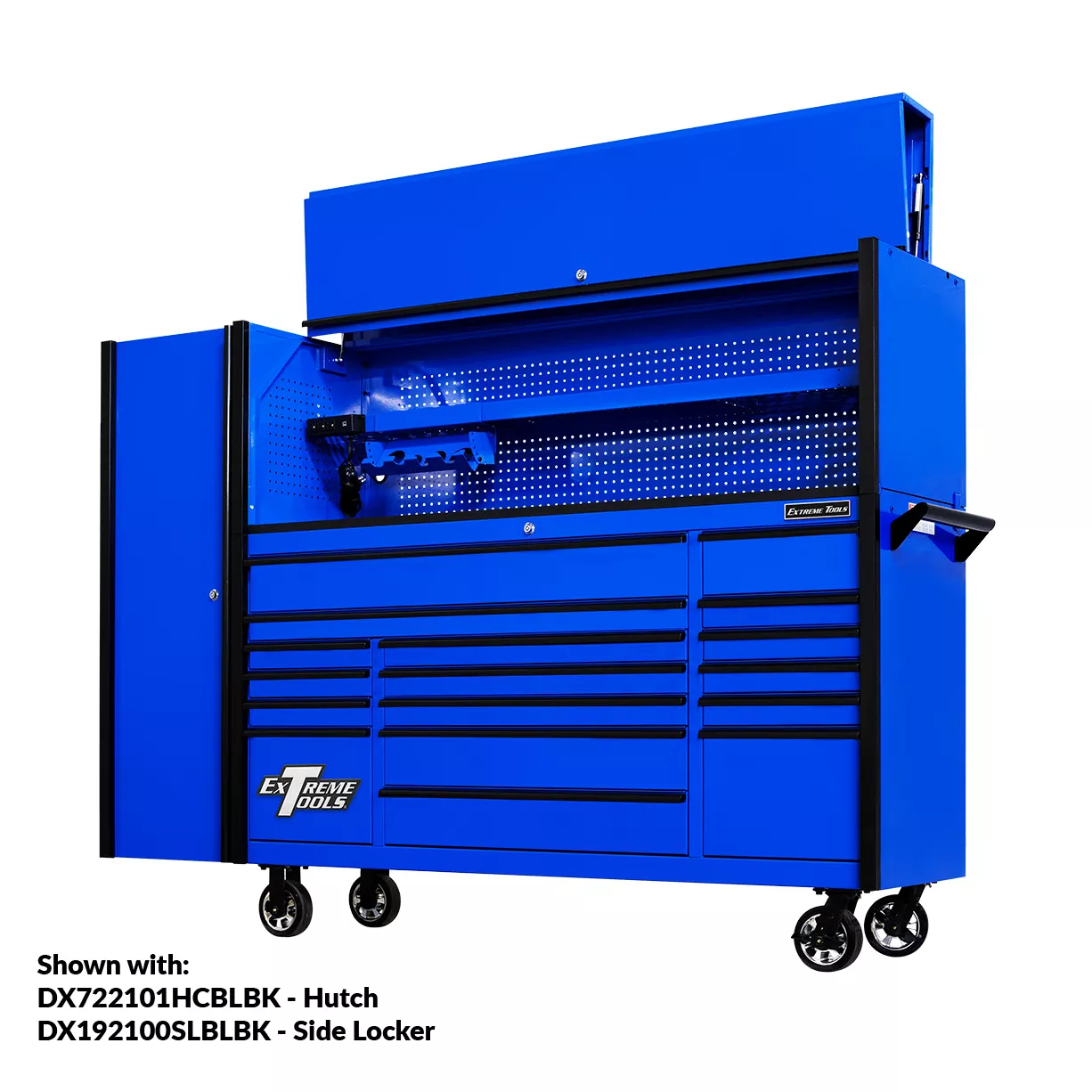

- DX722101HC, 72” Professional Hutch with Power Tool Rack

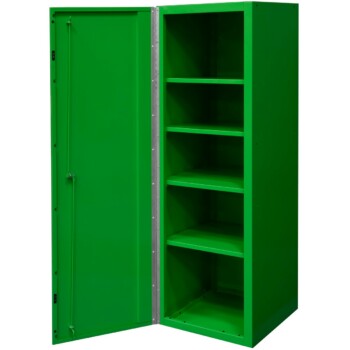

- DX192100SL, 19” 4 Shelf Side Locker
Features and Benefits of this 72 Inch 17 Drawer Roller Cabinet
- Overall Dimensions: 72″W x 21″D x 42.75″H
- Heavy-duty steel frame construction
- 17 heavy-duty drawers with patented self-latching system and full-width aluminum drawer pulls
- Full-extension ball-bearing drawer slides, load-rated at 100 lbs per single sets, and up to 200 lbs. each for double sets, make it easy to reach the back of every drawer
- Two extra-wide drawers with added supports
- Plenty of extra-deep drawers, load-rated up to 200 lbs. each
- High-gloss AkzoNobel powder-coated finish, available in six stylish color combinations
- Full-width anodized aluminum drawer pulls in contrasting colors
- Tubular coded lock system allows you to secure your tools
- Four 6″ x 2″ Mag Wheel casters (two locking swivels and two rigid), load-rated at 900 lbs. each
- Sturdy tubular powder-coated steel side handle for moving the toolbox
- Premium PVC drawer liners included to protect your tools
| Weight | 452 lbs | Dimensions | 72 × 21 × 42.875 in |
|---|---|---|---|
| Color Selection | Black/Blue, Black/Red, Blue/Black, Green/Black, Matte Black/Black, Orange/Black | Size | 72″ |
| Finish | German AkzoNobel High Gloss Powder Coat | Number of Drawers | 17 |
| Warranty | Limited 5 Year | Lock Style | ABA Tubular coded lock and chrome plated bezel & keys EX01, EX02, EX03 and EX04 |
| Drawer Liner | PVC | Product Materials | Steel |
| Series | DX Series | Top Panel | 18 gauge |
| Bottom Panel | 14 gauge | Back Panel | 18 gauge |
| Side panels | 18 gauge | Top Reinforce Support | 16 gauge |
| Inner Panel | 19 gauge | Drawer front | 18 gauge |
| Drawer back | 21 gauge | Drawer body | 21 gauge |
| Total Capacity | 16.28 cubic feet | Sets of Drawer Slides | 23 (3 section 100 lbs rating ball bearing slides) |
| Drawer Load Rating | 100 lbs per set of slides (drawers with double sets of slides hold 200 lbs) | Quick Release draw pull | DX style, steel formed drawer pull handle |
| Vertical Side Trim | Formed steel with high gloss powder coating with locking tabs onto outer vertical frame | Work Surface | 1″ thick MDF with black laminated sheet on both sides and PVC trim on all 4 sides |
| Side Handles | Oblong shape steel tubing with welded bracket, powder coat finish | Caster Type | 4 Mag wheel:2 lockable swivel, 2 rigid |
| Drawer Handle | Powder coated quick release drawer pulls | Shipping Weight | 540 lbs |
| Caster Capacity | 900 lbs per caster | Caster Size | 6″x 2″ |
DX Series
What makes the DX Series Extreme?
Innovative, creative thinking is where Extreme Tools® starts its product development process. Our goal was to make a professional self-latching drawer pull at a more affordable cost. Our efforts were a success! We re-created and patented the DX Series Quick Release drawer pull. This line of drawer pulls is strong, sturdy and made from powder-coated steel so that they last. The DX Series drawer pulls fasten across the front of the drawer so that the handle never pulls away from the drawer or bends when you pull on it. We use heavy-duty steel hooks to hold the drawers closed so that you do not have to worry about them opening if you move your tool box. Plus, our patented design still allows you to open the drawer from anywhere on the drawer pull with just one hand.
Like our other series, Extreme Tools® tool boxes always start with a strong base. The DX Series roller cabinet frame is constructed from 14-gauge steel so it can handle the weight of your tools. Then, we outfit it with our exclusive Mag Wheel casters which can hold up to 900 lbs. each to support your loaded box.
The drawers are constructed from heavy-duty, powder-coated steel so that they hold up whether they are in a professional setting or at home in your garage. We included two extra long drawers and two extra deep drawers to accommodate tools both long and bulky tools. Each drawer can hold 100 lbs. if it has single slides and up to 200 lbs. if it has double slides.
Extreme Features
In addition to roller cabinets, the DX Series offers Extreme Power Workstation® hutches and side lockers. The patented design of our hutch assembles easily on the DX roller cabinet and features an adjustable shelf with laser cut openings to hold and organize a variety of small hand tools. The shelf is equipped with an attached power strip that houses two USB ports and is engineered to hold a variety of accessories: socket holder, media/tech holder with charging pad, and power tool rack. The side and back panels are constructed from powder-coated steel peg board which allows you to hang tools and equipment. Matching side lockers come with 4 adjustable/removable shelves to accommodate both large and small items.
To protect the DX tool boxes, we use a specially formulated AkzoNobel powder coat finish that resists chemicals, scratches, rust and stains. This high-quality powder finish allows Extreme Tools® to offer a variety of color combinations to suit a wide range of tastes.
As it is with all our tool boxes, Extreme Tools pays attention to the extras that make a difference. A side handle and PVC drawer liners are always included. We also provide a PVC laminated MDF work surface to protect the top of the roller cabinet. And, when it is time to lock it up, we installed a secure, tubular coded lock with two keys, so your tools stay safe.
The DX Series comes with a Five Year Limited Warranty and the promise of Extreme Tools® superior quality and customer service.
